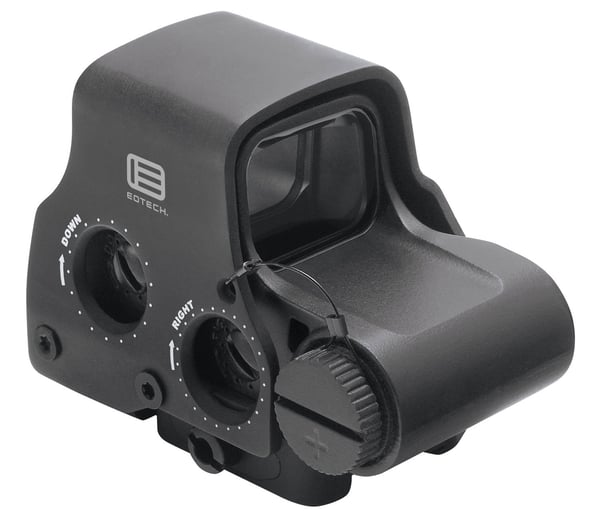

EOTECH EXPS3-2 Holographic Sight

Eotech has done it again by making the best even better. Offering true 2 eyes open shooting, a transversly mounted lithium 123 battery, and 7 mm raised base offering iron sight access, the new Extreme-XPS (EXPS) features easy to adjust side buttons and a single, quick release throw lever for easy attachment and removal.

Reticle is a 65MOA circle with two 1MOA aiming dots Single transverse 123 battery to reduce sight length Shortened base only requires at most 2 3/4 inch of rail space compared to the 4 inch N battery sights Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle Average battery life at brightness level 12 is roughly 500-600 hours, 3X battery life of N cell sights Side buttons, NV compatible with a single quick detach throw lever

Operation

Optics: Transmission holography - parallax free

Magnification: 1x

Eye Relief: Unlimited

Length/Width/Height: 3.5x2.4x2.8 (91.4X 60.9x71mm)

Weight: 11.2 oz (317grams)

Temperature: -40 to 150 F

Waterproof: Submersible to 33 ft depth

Sealing: Fogproof internal optics

Color/Finish: Non reflective black with hard coat finish

Adjustment (per click): 0.5 MOA (1/2 at 100 yds)

Adjustment Range: +/- 40 MOA travel

Mount: 1 Weaver or (MIL-STD-1913) rail. Adjustable for width variation

Return to Zero: Repeatable to within 2 MOA after re-mounting

Night Vision Compatibility: 10 brightness setting (generation I-III+)

Heads-Up-Display Window

Optical Surfaces: Anti-glare coating

Window Dimensions: 1.20 x 0.85 (30 x 23mm)

Front Window Material: 1/8 solid glass

Rear Window Material: Shatter resistant laminate (3/16 thick)

Field of View (100 yds): 30 yds (28m) at a 4 eye relief

Reticle Options: EXPS Models include only one of the following reticles:

65 MOA ring with single 1MOA dot

65MOA ring with two 1MOA dots

Electrical

Brightness Adjustment Range: 146,000:1 brightest to lowest

Night Vision Brightness Range: 1280:1 with NV switch engaged

Power Source: (1) 123 lithium battery

Battery Life: 600 continuous hours at nominal setting 12

Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)

Auto Battery Check Indicator: Flashing reticle upon start-up

Auto Shut-down: At 8 hrs- programmable to 4 hrs
