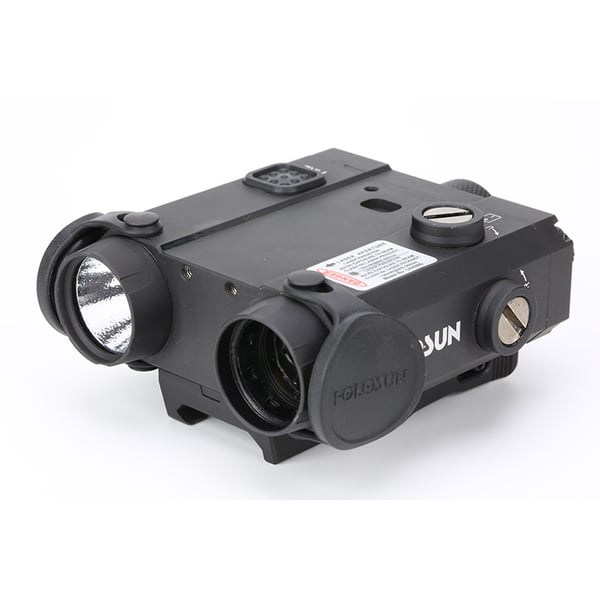

The LS420 is a multi-laser device that integrates a green laser, IR laser, IR illuminator and 600 lumen white LED Flashlight. It has a rear facing mode selector switch allowing the user to fire different emitters and combinations of emitters by pressing the fire button. The laser beams are co-aligned so all the emitters can be zeroed at the same time by manipulating the windage and elevation adjusters. The IR illuminator-focusing knob is located at the rear of the unit for ease of adjustment from a wide to narrow beam. Also included is a mounting plate to attach a red-dot optic to the top of the laser housing.
Coaxial visible laser, IR laser, IR illuminator and White Light
Rear side focusing knob
QD mount integrated
CNC machined housing
Can be used as a stand alone unit or with a top mounted micro optic
Remote cable switch and optic bracket included
OPTICAL DATA
Visible Laser Output Power (mw): 5
Green or Red Laser Class: IIIa
IR Laser / Illuminator Output Power (mw): 0.7
IR Laser / Illuminator Class: 2M
Green Laser Wavelngth (nm): 520
Red Laser Wavelength (nm): 635
IR Laser Wavelength (nm): 830
Flashlight Output Power (lum): 600
ELECTRONIC DATA
Battery Type : CR123A
Green Laser Battery Life 8 Hours
MECHANICAL DATA
Housing Material: 7075 T6 Aluminum
Surface Finish: MAO
Housing Color: Black
Laser Adjustment per Click: 0.5 MOA
Laser W&E Travel Range: ±60 MOA
Storage Temperature: -40F - 149F
Working Temperature: -40F - 124F
Submersion : 5M for 30 minutes
Vibration : Up to 1000G
PHYSICAL DATA
Dimension (in): 3.6x2.9x1.6
Weight (oz): 10.6
