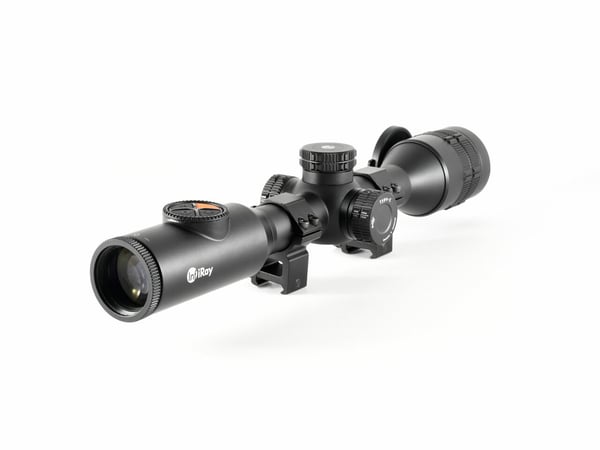

The BOLT Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.
Inside of a BOLT TL35, the image from an InfiRay 50Hz 12 micron Micro II core is displayed on a crystal clear HD display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The BOLT also comes standard with 16 Gb of internal memory for hours of video capture.
OLD MEETS NEW
The BOLT features InfiRay Outdoor's innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor's mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.
HIGH PERFORMANCE
The TL35 features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TL35 uses a set of optics specifically designed for a 12 micron sensor and a low power consumption LCOS HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.
ADVANCED TECHNOLOGY
The BOLT comes with 16gb of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT simultaneously allowing multiple viewers to see the BOLT's thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.
- Sensor Resolution: 384×288
- Sensor Pixel Size: 12μm
- Sensor Frame Rate: 50hz
- Objective Focal Length: 35mm f/1.1
- Objective F#: F1.1
- Optical Magnification: 3X
- Detection Range: 1750 Yards
- Onboard Recording: Video and Image
- Device Technology: Thermal Imaging
- Digital Magnification: 4X, stepped
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
OPTICS
- Objective Lens Material Germanium
- Objective Focal Length 35mm f/1.1
- Objective F# F1.1
- Optical Magnification 3X
- Detection Range 1750 Yards
- Display Type AMOLED
- Display Resolution 1280×960
- Focusing Mechanism Manual Focus
- Eye Relief 70mm
- Digital Magnification 4X, stepped
- Diopter Range -5 - +5
FEATURES
- Rangefinder Stadiametric
- Onboard Recording Video and Image
- Warranty 5 Years
- Picture-in-Picture Yes
- Reticle 7 (2 Dynamic, 5 Static)
- Image Capture Yes
- Mobile App Yes
- Wifi Yes
- Video Output Analog RS-170/NTSC
- Connector Output Power/Data
- Connector Type USB-C
PHYSICAL
- Length 15.74 in
- Height 3.34 in
- Width 2.55 in
- Mounting Interface 30MM Rings (included)
- Housing Material T-6061 Aluminum
- Weight 36.61 Oz
SENSOR SPECIFICATIONS
- Sensor Resolution 384×288
- Sensor Pixel Size 12μm
- Sensor Frame Rate 50hz
- Sensor Type InfiRay MICRO II
- Thermal Sensitivity <50mk
- Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
- Spectral Response 8-12 Microns
- Device Technology Thermal Imaging
