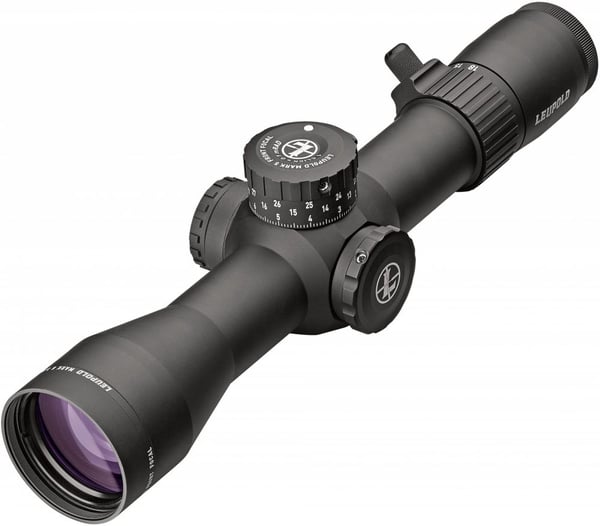

Pick up a Mark 5HD and you’ll feel the difference: it’s up to 20 ounces lighter than other scopes in its class. Get behind one and you’ll see the difference, from the superior edge-to-edge clarity and extreme low-light performance, to the versatility of the Combat Competition Hunter reticle. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. Ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever so you can put accurate fire downrange faster.
Punisher Tested.
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.
Fast-Focus Eyepiece.
Brings the reticle into focus quickly with Fast-Focus eyepiece.
Ultra-Lightweight Design.
Disperses recoil energy for unrivaled durability and performance with ultra-lightweight construction.
Waterproof & Fogproof.
Absolute waterproof and fogproof integrity means it's ready to perform in the field, in all conditions.
Side Focus.
Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.
Front Focal Plane (FFP).
The reticle magnifies along with the image, so you can estimate range at all magnification settings. These reticles are ideal in tactical situations, yet also provide greater accuracy of range estimation for hunters and target shooters.
35mm Maintube.
35mm Maintube allows you to experience unparalleled windage and elevation adjustment travel.
1/10th MIL Click Adjustment.
Features 1/10th MIL click windage and elevation adjustments.
Twilight Max HD Light Management System.
See more in less light with Twilight Max Light
Management System
Adds up to 30 extra minutes of shooting light
Eliminates 90% more glare-producing stray light than
competitors
Premium edge-to-edge lens clarity
Throw Lever.
Allows for near instant magnification changes.
5:1 Zoom Ratio.
Versatile magnification range offers a wide field of view at low power and precise target identification at high power.
M5C3 ZeroLock Adjustments.
Dial Illumination Control.
Positive clicks and clear numerical intensity level indicators: Mark Series product also include off positions between each illumination intensity setting to allow quick return to a preferred brightness.

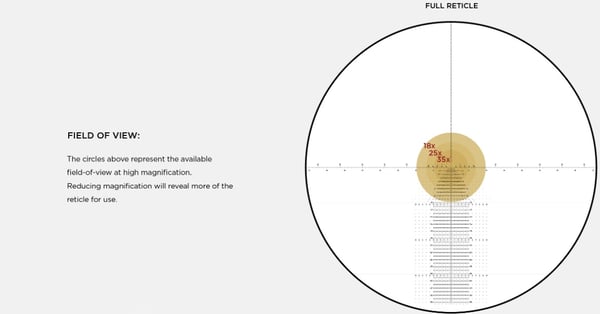

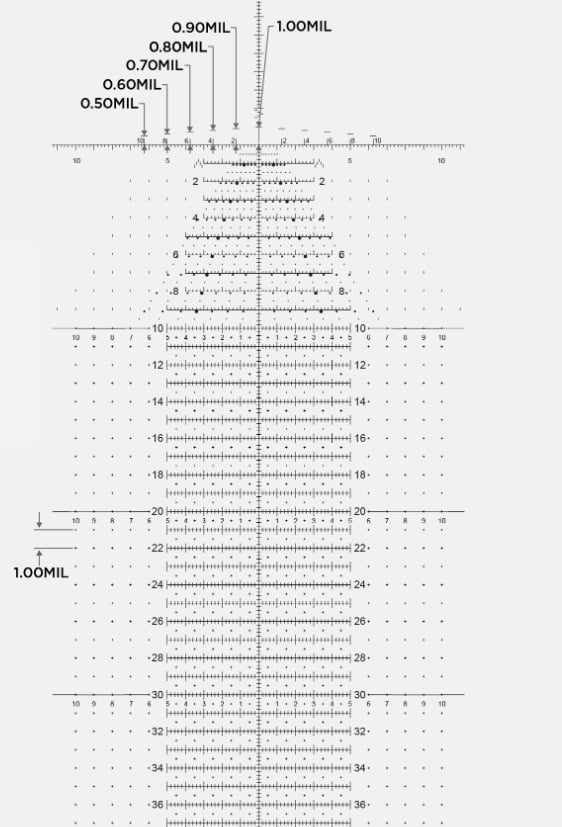

Front Focal Tremor 3 Reticle:
Designed by Horus Vision with serious shooters in mind
Utilizes a MIL based system
Grid style reticle provides precise aiming points for bullet drop compensation and wind correction
Centralized dots at crosshair intersections for refined aiming points

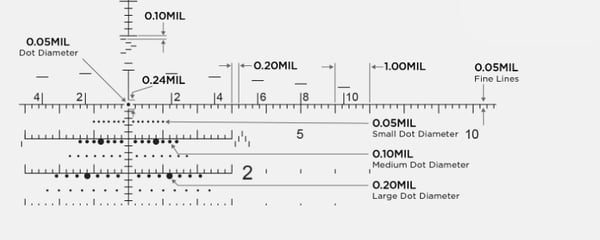

Chevron MIL markers measure 0.1 MILs for precise measurements
Increases number of hold over dots over the Tremor2
Includes rapid ranging marks found on the H-59 reticle above the central horizontal line
Open upper half of the reticle for observation and spotting
Large number of aiming points provides excellent corrections for follow-up shot placement
Numbered lines makes for quick line identification
Front focal reticles enables full function of the holdovers throughout the whole magnification range
Specifications:
Weight: 26 oz
Linear FOV (ft/100 yd) - High: 28.4
Length: 12.06"
Linear FOV (m/100 m) - High: 5.8
Length: 30.6 cm
Eye Relief - Low: 3.54"
Eye Relief - High: 3.82"
Eye Relief - Low: 90 mm
Eye Relief - High: 97 mm
Weight: 737 g
Elevation Adjustment Range: 100 MOA
Elevation Adjustment Range: 29.1 MIL
Windage Adjustment Range: 80 MOA
Windage Adjustment Range: 23.3 MIL
Exit Pupil - High 2.4 mm
