Every CDS model scope comes with a standard MOA or MIL dial right out of the box, so it's not a custom dial yet. To get yours, enter your ballistic information that can usually be found on your ammo box or the manufacturer's website and some of the environmental conditions where you'll be shooting the most, and we will laser-etch a new elevation dial to match. Once you receive the new dial in the mail, swap out the standard MOA or MIL dial, and you're good to go. The Custom Dial System® (CDS) ensures your scope is now perfectly tuned to the ballistics of your rifle.
Fully understanding your ballistics can be intimidating. That's why the Leupold Custom Dial System® (CDS) laser-etches your scope's elevation dial to match your load, velocity, and conditions. All you do is range your target, turn the dial to that number, and aim dead on. No more holdovers, bullet drop reticles, or ballistic calculators. Just quick, accurate shots every time.
- BDC Dial Included: No
- Custom BDC Dial Compatible: Yes
- Daylight Bright Illumination: No
- Elevation Adjustment Type: CDS
- Electronic Reticle Level: No
- Illuminated Reticle: No
- Locking Dial: No
- Magnification Type: Variable
- Motion Sensor Technology (MST): No
- Nightvision Compatible Illumination: No
- Revolution Indicator: No

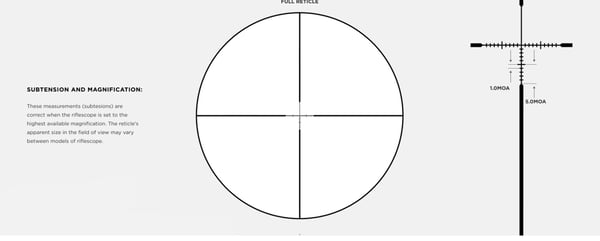

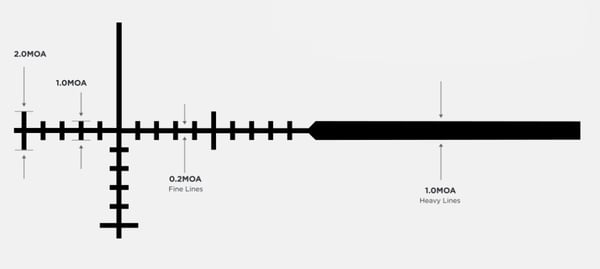

- Reticle: Tri-MOA
- Rezero Type: Set Screw
- Reticle Type: Second Focal Plane
- Adjustable Objective: No
- Windage Adjustment Type: Finger Click
- Weight (oz): 17
- Elevation Adjustment Value per Click: 1/4MOA
- Elevation Adjustment Range (MOA): 55
- Elevation Adjustment Range (MIL): 16
- Elevation Adjustment Range (cm @ 100m): 160
- Elevation Adjustment Per Revolution: 15 MOA
- Elevation Dial Travel Limit: 14MOA
- Windage Adjustment Value per Click: 1/4MOA
- Windage Adjustment Range (MOA): 55
- Windage Adjustment Range (MIL): 16
- Windage Adjustment Range (cm @ 100m): 160
- Windage Adjustment Per Revolution: 15 MOA
- Magnification Max: 18
- Magnification Min: 6
- Objective Lens Diameter (mm): 40
- Linear FOV Low Mag (ft@100yds): 13.1
- Linear FOV High Mag (ft@100yds): 6.8
- Angular FOV Low Mag (Degrees): 2.5
- Angular FOV High Mag (Degrees): 1.3
- Eye Relief Low Mag (in): 5.1
- Eye Relief High Mag (in): 3.8
- Minimum Parallax-Free Distance (yd): 60
Specifications
