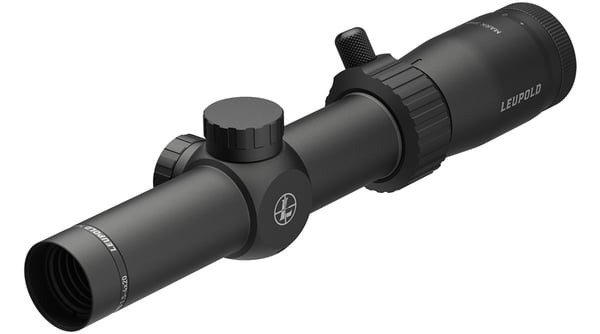

The Mark 3HD™ was built for any shooter who needs a rugged, precise, and repeatable MIL-based scope for their tactical rifle. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.
- Specifically designed for .223 AR-style rifles
- Based on a Duplex® style design
- Provides holdover hash marks for quick target engagement
- Uses a 200 yard zero with aiming points out to 600 yards
- Rear (second) focal plane
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
- BDC Dial Included: No
- Custom Dial System (CDS): No
- Custom BDC Dial Compatible: No
- Daylight Bright Illumination: No
- Elevation Adjustment Type: Finger Click
- Electronic Reticle Level: No
- Illuminated Reticle: No
- Light Management System: Elite Optical System
- Locking Dial: No
- Magnification Type: Variable
- Motion Sensor Technology (MST): No
- Nightvision Compatible Illumination: No
- Reticle Focal Plane: Second Focal Plane
- Revolution Indicator: No
- Reticle: AR-Ballistic
- Rezero Type: Resettable Index Ring
- Reticle Type: Second Focal Plane
- Adjustable Objective: No
- Precision Side Focus: No
- Windage Adjustment Type: Finger Click
- Weight (oz): 12.4
- Elevation Adjustment Value per Click: 0.1Mil
- Elevation Adjustment Range (MOA): 115
- Elevation Adjustment Range (MIL): 33.5
- Elevation Adjustment Range (cm @ 100m): 334.5
- Elevation Adjustment Per Revolution: 5 MIL
- Elevation Dial Travel Limit: Total Scope Travel
- Windage Adjustment Value per Click: 0.1Mil
- Windage Adjustment Range (MOA): 115
- Windage Adjustment Range (MIL): 33.5
- Windage Adjustment Range (cm @ 100m): 334.5
- Windage Adjustment Per Revolution: 5 MIL
- Magnification Max: 4
- Magnification Min: 1.5
- Objective Lens Diameter (mm): 20
- Linear FOV Low Mag (ft@100yds): 74.2
- Linear FOV High Mag (ft@100yds): 29.3
- Angular FOV Low Mag (Degrees): 14.1
- Angular FOV High Mag (Degrees): 5.6
- Eye Relief Low Mag (in): 4.2
- Eye Relief High Mag (in): 3.7
- Fixed Parallax-Free Distance (yd): 150
