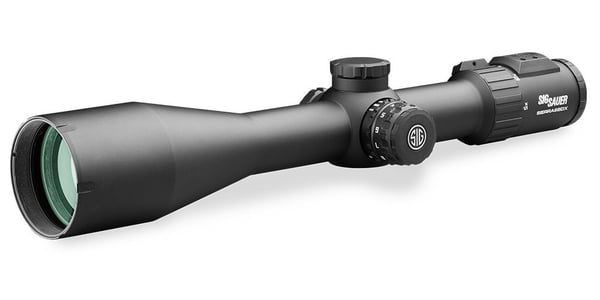

SIERRA6BDX 5-30x56 mm
Built upon SIERRA3 award-winning technology, and the SIG SAUER® BDX Ballistic Data Xchange technology, the SIERRA6 family of riflescopes provides the hunter or marksmen with an intelligent auto-holdover specific to their ballistics, target, and environment. Pairing a SIERRA6 to a BDX equipped rangefinder allows users to bring the capability of Applied Ballistics® into the field without the need for a mobile device.
Features- Integrated BDX Ballistic Data Xchange 2.0 with Up to 95% Light Transmission
- Advanced HDX® 6x Optical System - Automatic Hold-over Dot on a Digital Focal Plane
- Ballistic Profiles Compatible with Centerfire, Muzzleloader, and Crossbow Platforms
- Innovative KinETHICTM Kinetic Energy Transfer Indicator for Ethical Shots
- Dependable Waterproof and Fog-Proof Performance (IPX-7 for Complete Immersion up to 1 Meter)
- Argon Purged for an Enhanced Lifetime of Performance
- LevelplexTM with Auto Levelplex Mode
Specifications
SKU SOSBDX65111
FOCAL PLANE Digital
RETICLE BDX-R2
ADJUSTMENT INCREMENTS 0.25 MOA
WEIGHT 30.4
MAINTUBE DIAMETER 34 mm
TRAVEL PER ROTATION 20 MOA
PARALLAX SETTING Adjustable
FIELD OF VIEW LOW (FT @ 100 YARDS) 21.0
FIELD OF VIEW HIGH (FT @ 100 YARDS) 3.5
EYE RELIEF HIGH (IN) 3.9
EXIT PUPIL LOW (MM) 8.1
EXIT PUPIL HIGH (MM) 1.9
DIOPTER ADJUSTMENT RANGE +/- 2
WATERPROOFING IPX7
OCULAR OUTER DIAMETER (IN) 1.61
INTERNAL GAS PURGE Argon
ILLUMINATION SETTINGS 8 Daytime / 2 NV
EYE RELIEF LOW (IN) 3.7
TOTAL ELEVATION TRAVEL 60 MOA
TOTAL WINDAGE TRAVEL 60 MOA
BATTERY (2) CR2032
OBJECTIVE LENS DIAMETER (MM) 56 mm
COLOR Black
MAGNIFICATION 5-30x
ILLUMINATION Yes
