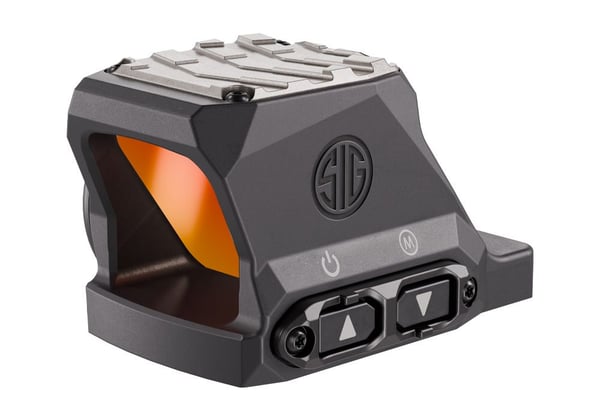

The SIG SAUER XRAY5 Advanced Red Dot Sight combines a red 3.5 MOA dot with solid-state construction and digital zero adjustment. Its rigid 225-dot matrix replaces mechanical adjustment components, while the XRAY5 App lets you save and recall multiple zero profiles. This top-mount version uses the PRO footprint and features a fully enclosed optical system, adaptive illumination and a side-loading battery.
FEATURES
- Solid-state architecture with a rigid 225-dot matrix
- Patented Zero Distortion Optic system
- Digital zero adjustment through onboard buttons or the XRAY5 App
- Save and recall multiple zero profiles
- LightFight adaptive reticle illumination and MOTAC motion activation
- Resettable round counter
- Fully enclosed, argon-purged optical system
- Side-loading battery compartment
- Designed, developed, tested and assembled in the USA
SPECIFICATIONS
- Reticle: Red 3.5 MOA dot
- Mounting Footprint: PRO
- Mount Type: Top mount
- Clear Aperture: 24mm, measured diagonally
- Housing: 7075 aluminum
- Lens Shield: Grade 5 titanium
- Finish: Black anodized
- Brightness Settings: 15 — 13 daylight and 2 night vision
- Elevation Adjustment Range: 80 MOA
- Windage Adjustment Range: 80 MOA
- Battery: One CR2032
- Battery Life: Up to 10,000 hours
- Waterproof Rating: IPX8, rated to 40 meters
- Overall Length: 1.9 inches
- Overall Width: 1.32 inches
- Height: 1.17 inches
