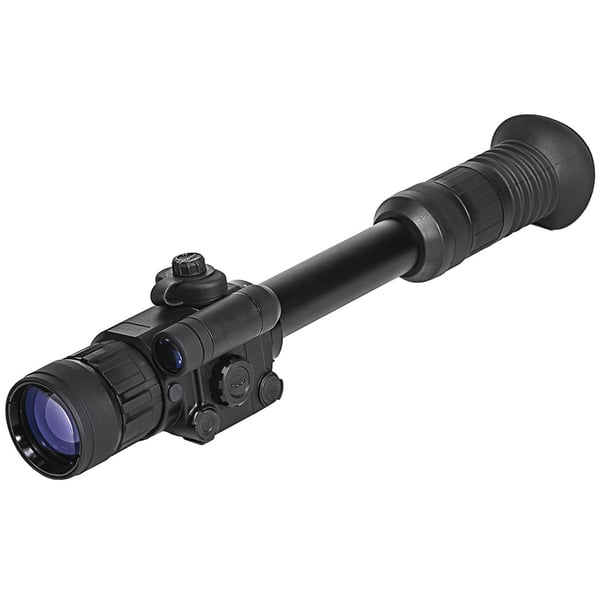

SIGHTMARK Photon XT 4.6 x 4.25 Digital Night Vision Riflescp

Engineered for precision placement at medium range, the extremely versatile Sightmark Photon XT 4.6x42 delivers a higher magnification, 33% longer battery life and 30% lighter weight than other digital night vision riflescopes on the market. Featuring six red/green/white digital reticle options for a vast range of applications, the scope includes: two crossbow reticles designed for 320, 350, 370 and 400 fps crossbows; two Duplex reticles for hog and varmint hunting; a Mil-Dot reticle for rangefinding and holdovers; and a German-style reticle. Its 4.6x magnification, large 42mm objective lens and higher than average 640x480 resolution offers crisp detailing at up to 120 yards. Shooters have the ability to capture everything seen, day or night, through the video output feature, and attach additional accessories to the scope’s integrated weaver rail. The device also utilizes a digital windage and elevation adjustment system for guaranteed precision and an overall streamlined design.

Specifications:

Type of Sensor: CMOS Sensor

Camera Resolution: 656 x 492 Pixels

Display Type: LCD

Display Resolution: 640 x 480 Pixels

Video IN / OUT Availability: No / Yes

Pin Type of Video Input / Output: RCA

Magnification: 4.6x

Diameter, Objective Lens: 42 mm

Digital Zoom: NA

Lens Focus: 50 mm

Relative aperture, D/f': 1:1.2

Field of View: 4.3 Degree

Field of View: 7.5 m @100 m

Field of View: 22.5 ft @100 yd

Close Focus Distance: 10 m

Eye Relief: 2.36 / 60 mm

Diopter Adjustment: +/-3

Resolution: 38 lines per mm

Emitter: LED

IR Wavelength: 810 nm

Equivalent IR Power: 60 / 90 / 120 mW

Beam Divergence: Greater than or Equal to FOV degree

Range of Detection: 130 / 120 yd/m (Object 1.7m High, Illumination Level 0.05 Lux(1/4 moon)

Power Supply: 2.0 - 3.3 VDC

Battery Type: AA x2

Battery Life (w/out IR): 5 Hours

Battery Life (with IR): 4 Hours

External Power Supply: No

Windage Adjustment: 25 mm @100 m per Click

Elevation Adjustment: 25 mm @100 m per Click

Windage Range of Adjustment: 60 Clicks

Elevation Range of Adjustment: 60 Clicks

Number of Preloaded Reticles: 6

Material, Lens: Glass

Body Material: Glass-Nylon Composite / Metal

Type of Mount for Attachment of Additional Accessories: Weaver

Operating Temp: - 15 to 50 / 5 to 122 F/C

Waterproof Rating: IPX4 (Weatherproof)

Nitrogen Purged: No

Shockproof: Yes

Maximum Recoil: 1000 G's

Diameter, Tube: 30 mm

Length: 15.7 / 398 in/mm

Width: 2.9 / 75 in/mm

Height: 3.1 / 80 in/mm

Weight: 23.6 oz (with batteries)
