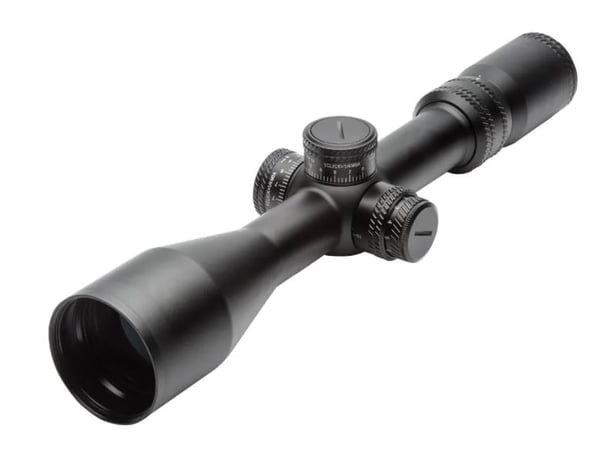

The Citadel 3-18x50 LR1 riflescope is designed for medium-to-long range shooting, competition shooting, law enforcement and hunting. The Citadel features a 6x optical system, a fully multi-coated lens, exposed locking turrets and a red illuminated reticle with 11-brightness settings. The first focal plane reticle means the size of the reticle remains the same in any magnification and holdovers and range finding can be performed. The new reticle, LR1, is a 1/4 MOA reticle allowing each click adjustment to move the point of impact ¼ of an inch at 100 yards. The riflescope is crafted out of a single shockproof aircraft-grade aluminum 30mm tube and is IP67 waterproof and dustproof. The optic comes complete with flip-up covers, a throw lever to adjust the magnification with ease and a sunshade.
Features
6:1 zoom ratio
Exposed low-profile locking turrets
First focal plane reticle
Red illuminated reticle
Single-piece 30mm tube
Aircraft grade aluminum
Hard anodized finish
Shockproof/fogproof/waterproof
Specs
Reticle, Type LR1 (MOA)
Reticle Etched glass
Reticle, Color Red
Illuminated (yes/no) Yes
Reticle Brightness Setting 0-11
Finish/Color Matte black
Magnification 3-18 x
Diameter, Objective Lens 50 mm
Diameter, Eyepiece 1.6 / 40 in / mm
Diameter, Exit Pupil 7.4 - 2.7 mm
Eye Relief 4.6 - 3.7 / 116.8 - 94 in / mm
Field of view, m@100m 11 - 1.9
Field of view, ft@100yd 33 - 5.8
Diopter Adjustment +2 to -2
Diameter, Tube 30 / 1.18 mm / in
Parallax Setting 15 - 8 yds
Mil adjustment (one click =) 1/4 MOA
Windage Range of Adjustment 60 MIL
Elevation Range of Adjustment 60 MIL
Windage & Elevation, Lock Yes
Maximum Recoil .338
Battery Type CR2032
Battery life, hours 100 - 70
Battery Voltage, V 3
Sunshade Yes
Nitrogen Filled Yes
Shockproof Yes
Fog Proof Yes
Focal Plane 1st
IP Rating (waterproof) IP 67 - waterproof and dustproof
Body Material Aluminum
Lens Coating Fully multi-coated
Operating Temperature 0 to 120 / -17 to 49 F / C
Length 13 / 330 in / mm
Width 3.1 / 79 in / mm
Height 2.24 / 56 in / mm
Weight, oz 26.1 oz
