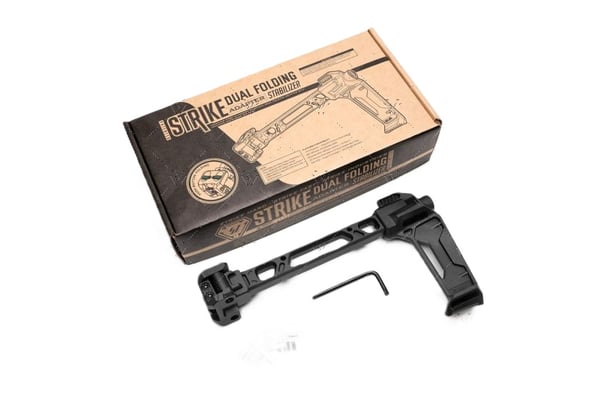

Strike FSA Dual Folding Adapter — Stabilizer Edition
Patented dual-folding adapter that mounts to a 1913 Picatinny rear interface and folds left or right without reconfiguration. Positive lock when folded and rapid deployment with a simple upward pull; includes the stabilizer end for ergonomic pistol setups.
Features
- Folds to either side at any time; no flipping or re-installing parts
- Positive lock in the folded position; quick, tool-less deployment
- 3° downward tilt helps avoid ejection-port interference when folded right
- Direct 1913 Picatinny mount with two built-in locking lugs
- Single rear QD sling mounting point (stabilizer end)
- Steel hinge with 6061-T6 aluminum base, adapter and strut
- Modular system accepts optional ends and accessories
Specifications
- Overall Length Added (Stabilizer): 9.24" (234.64 mm)
- Folded Length Added (Adapter): 1.02" (26.00 mm)
- Fully Assembled w/ Stabilizer — Length: 240.50 mm (9.44")
- Fully Assembled w/ Stabilizer — Width: 53.05 mm (2.09")
- Fully Assembled w/ Stabilizer — Height: 141.95 mm (5.59")
- Fully Assembled w/ Stabilizer — Weight: 9.60 oz
Included
- Dual Folding Adapter (fully assembled with stabilizer)
- T25 Torx tool
- Warning card
Compatibility
- Rear-facing 1913 Picatinny rails
- Strike AR Picatinny Stock Adapter
- B&T APC9/45, APC223/300, GHM
- Brownells BRN-180 lower receiver
- CZ Bren 2
- CZ Scorpion EVO (with SI Stock Adapter Back Plate)
- Galil ACE
- Ruger PC Charger
- SIG SAUER MCX/MPX
Notes
- Press both buttons simultaneously to remove the bar from the hinge
- Lubricate hinge and button components periodically
- Rubber pads install inside the adapter (bar-facing side) to fine-tune locking tension when deployed
- Optional cheek riser is intended for use only with a stock configuration where legally applicable
