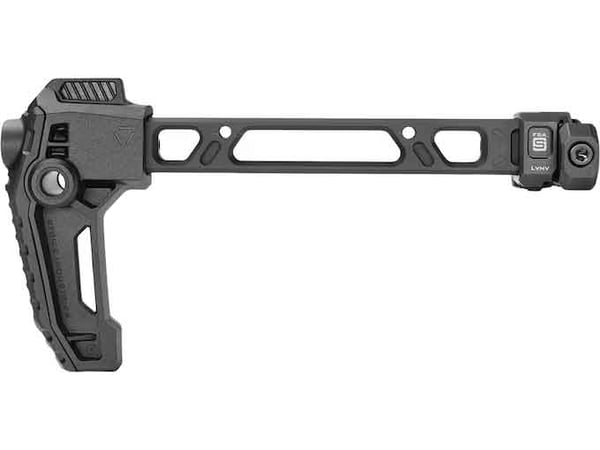

Strike Single Folder — Stock Edition
Single-side folding arm with a strengthened steel hinge and modular stock rear piece for a solid shoulder weld. Installs to a 1913 Picatinny rear interface, folds without buttons, locks tight with minimal play, and deploys instantly with a throw-open motion.
Features
- Steel hinge for maximum rigidity and service life
- Single-side folding (install to fold left or right); fast, tool-less operation
- Positive lock when folded; quick deployment by throwing the arm open
- Direct 1913 Picatinny mount with M5 screw and locking plate
- Ambidextrous QD sling mounting points on the stock end
- Anti-slip buttpad for a consistent shoulder weld
- Tight, low-play lockup in both folded and extended positions
Specifications
- Adds 9.09" (230.8 mm) to overall length in operating position
- Adds 0.8" (20.30 mm) to overall length when folded
- Weight: 11.0 oz (base); 12.41 oz with cheek riser installed
Included
- Strike Single Folder with stock end (pre-assembled)
- T27 Torx tool
- Warning card
Compatibility
- Rear-facing 1913 Picatinny rails (broad platform support including AR-pattern lowers with 1913 adapters, PCCs, and select factory 1913-tail receivers)
Notes
- Break-in: slight initial “bite” may be present; normalizes with use
- Routine maintenance: lubricate hinge
- Torque (Picatinny mount screw): up to 40 in/lbs on aluminum rails; up to 35 in/lbs on polymer rails
- Optional cheek riser available for the stock configuration where legally applicable
