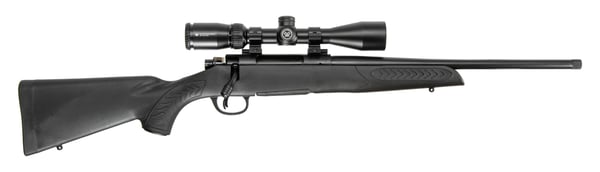

From The range, to the fields, to the mountains – any pursuit, and easy on the wallet, adaptable length of pull – the T/C® Compass® II Compact is a rifle that will grow with you and/or accommodate clothes layering as the weather changes.
Ergonomic, lightweight stock combines classic lines and textured grip panels - with a tastefully contoured cheek piece.
Three-lug 60 degree lift bolt provides good scope clearance and a smooth, easy cycling action.
Aluminum pillar bedding system positively locates the receiver and free-floats the barrel for outstanding accuracy.
Button-rifled barrel, with 5R rifling and threaded muzzle - provides outstanding accuracy and easy cleaning.
Features an easy-to-use 3-position safety (with bolt lock) that provides positive tactile feel, clear visibility and easy access.
Detachable (5-round) rotary magazine fits flush with the stock and provides smooth feeding.
Comes with front and rear sling swivel studs installed.
Includes Weaver-style scope mount bases installed.
Soft rubber recoil pad gives maximum felt recoil reduction.
Generation II trigger provides a 3-4 lb. pull with a crisp break for precision shooting.
Extended butt pad/spacer included, provides the ability to add or remove 7/8 inch to the length of pull for smaller shooters or to accommodate thick clothing during cold weather.
Specs:
Caliber : 223/5.56
Finish/Stock : Blued/Black Composite
Trigger : 3-4 lbs. GENERATION II
Barrel Length : 16.5"-5R
Rate of Twist : 1:9
Capacity : 5+1 Det. Mag
Length of Pull : 12.5" - 13.375"
Overall Length : 35.125" - 36"
Weight : 6.5 lbs.
Sights : None
Rifling : 5R
Model # : 12534
MSRP : $405
With long eye relief, a fast-focus eyepiece, fully multi-coated lenses and resettable MOA turrets, there's no compromising on the Crossfire II. Clear, tough and bright, this riflescope hands other value-priced riflescopes their hat. The hard anodized single-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for waterproof/fogproof performance.
FEATURES:
OPTICAL FEATURES:
Fully Multi-Coated - Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
CONSTRUCTION FEATURES:
Tube Size - 1-inch diameter.
Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof - Rugged construction withstands recoil and impact.
Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.
CONVENIENCE FEATURES:
Fast Focus Eyepiece - Allows quick and easy reticle focusing.
SPECIFICATIONS:
Magnification: 3-9 x
Objective Lens Diameter: 40 mm
Eye Relief: 3.9 inches
Field of View: 34.1-12.6 feet/100 yards
Tube Size: 1-inch
Turret Style: Capped
Adjustment Graduation: 1/4 MOA
Travel per Rotation: 15 MOA
Max Elevation Adjustment: 60 MOA
Max Windage Adjustment: 60 MOA
Parallax Setting: 100 yards
Length: 12 inches
Weight: 15 ounces
RETICLE:
Dead-Hold BDC Reticle - Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
