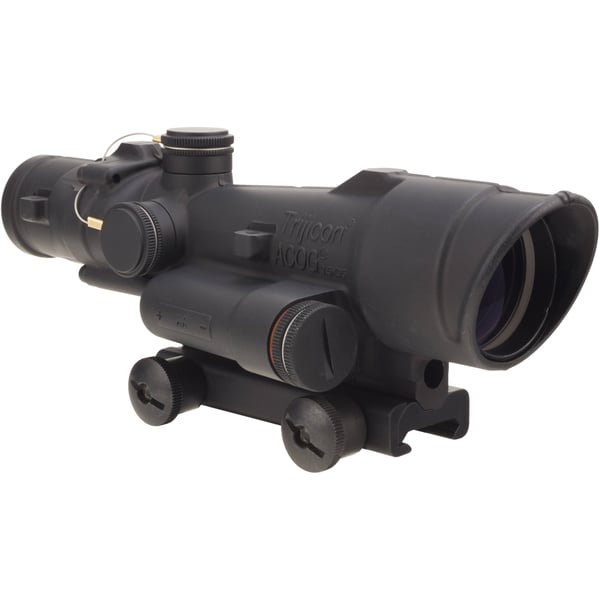

From the legendary ACOG® family of products, the LED ACOG is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle - even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting #4). Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminum, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 3.5x35 LED ACOG is also compatible with most other 3.5x35 ACOG accessories available.
Magnification 3.5x
Objective Size (mm) 35mm
Bullet Drop Compensator Yes
Length (in) 8.0 in.
Weight (oz) 16.8 w/out mount
Illumination Source LED
Reticle Pattern Horseshoe Dot
Day Reticle Color Red
Night Reticle Color Red
Calibration .223
Bindon Aiming Concept Yes
Eye Relief (in) 2.4 in. / 61mm
Exit Pupil (mm) 0.39 in. / 10.0mm
Field of View (Degrees) 5.5
Field of View @ 100 yards (ft) 28.9
Mount Comes With TA51
Housing Material Forged Aluminum
Batteries Single AA Lithium or Alkaline Battery
Battery Life Over 12,000 hours on setting #4 using supplied alkaline battery at 21ºC (70ºF)
Adjustment Increments (Range to Target) 2 click per in. @ 100m
Illumination Settings 6
Dimensions (LxWxH) 8.0 x 3.0 x 2.6 in, 203 x 76 x 66mm
TRIJICON ACOG 3.5x35 Red 223 Horseshoe/Dot Reticle TA51
$1,208.75
Ships To Your Home
Handled by our expert shippers in Bardstown, KY.
Partner Fulfilled
Shipping times could be slightly longer than usual.
Only a few left in stock - order soon!
