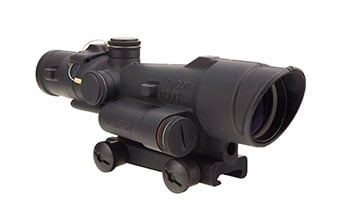

TRIJICON ACOG 3.5x35 Green 308 Chevron Reticle TA51 Mount

From the legendary ACOG® family of products, the LED ACOG is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle - even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting #4). Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminum, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 3.5x35 LED ACOG is also compatible with most other 3.5x35 ACOG accessories available.

Magnification 3.5x
Objective Size (mm) 35mm
Bullet Drop Compensator Yes
Length (in) 8.0 in.
Weight (oz) 16.8 oz. w/out Mount
Illumination Source LED
Reticle Pattern Chevron
Day Reticle Color Green
Night Reticle Color Green
Calibration .308
Bindon Aiming Concept Yes
Eye Relief (in) 2.4 in. / 61.0mm
Exit Pupil (mm) 0.39 in. / 10.0mm
Field of View (Degrees) 5.5
Field of View @ 100 yards (ft) 28.9
Mount Comes With TA51
Housing Material Forged Aluminum
Batteries Single AA Lithium or Alkaline Battery
Battery Life Over 12,000 hours on setting #4 using supplied alkaline battery at 21ºC (70ºF)
Adjustment Increments (Range to Target) 2 click per in. @ 100m
Adjustment Range 40 MOA Total Travel
Illumination Settings 6
Dimensions (LxWxH) 8.0 x 3.0 x 2.6 in, 203 x 76 x 66mm
