TRIJICON VCOG 1-6x24 Grn Segment Circle/Crsshr MIL Govt Ret

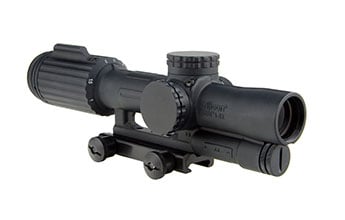

The Trijicon 1-6x24 VCOG (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings. The green LED boasts a battery life of 1,400 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. It is waterproof to 20 meters (66 ft.).

This model has a universal segmented circle/Mil reticle designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. It includes the thumbscrew mount.

Magnification 1-6x
Objective Size (mm) 24mm
Bullet Drop Compensator Yes
Weight (oz) 23.2 (w/o mount or battery)
Illumination Source LED
Reticle Pattern Segmented Circle / Crosshair MIL
Day Reticle Color Green
Night Reticle Color Green
Bindon Aiming Concept Yes
Eye Relief (in) 4 in. Constant
Exit Pupil (mm) 0.41 - 0.15 in.
Field of View (Degrees) 18.0 - 3.0
Field of View @ 100 yards (ft) 95 - 15.9
Adjustment @ 100 yards (clicks/in) 1 click @ 100m = 0.1 MIL
Mount Comes With TA51
Housing Material Forged Aluminum
Batteries 1 AA Lithium or Alkaline Battery
Battery Life Green LED: 1,400 hrs continuous use at brightness setting 4 of 6
Dimensions 10.05 x 2.51 x 2.73 in.
Focal Plane First
Adjustment Range Elevation: 26.2 MIL total travel; Windage: 26.2 MIL total
travel; Per Revolution: 8 MIL
