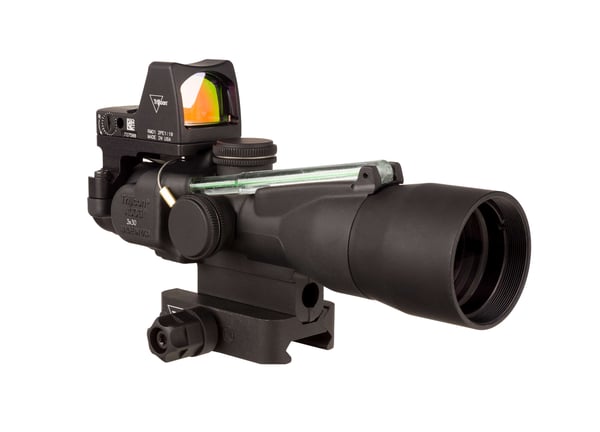

The Trijicon ACOG®/RMR® combo is the ultimate aiming solution for both Close Quarter Battle (CQB) situations and longer distance shots requiring additional magnification. This dual-sighting system gives the shooter a distinct tactical advantage with the option of the Trijicon ACOG and the RMR Type 2 Sight. With the quick target acquisition of the RMR sight and the precise aiming capabilities provided by the magnified Trijicon ACOG, the shooter has the ability to select the proper aiming solution for the situation at hand. Also, the RMR® offers similar rugged construction as the ACOG for the situation at hand. Truly the best of both worlds.
The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail
- Matte black anodized finish
- Made in the USA
SPECIFICATIONS
- Length x Width x Height 8.63 in x 8.37 in x 5.13 in (219.2mm x 212.6mm x 130.3mm)
- Magnification 3x
- Objective Size 30mm
- Reticle Pattern Horseshoe Dot
- Day Reticle Color Green
- Night Reticle Color Green
- Bullet Drop Compensating (BDC) Yes
- Caliber 5.56x45mm / 62gr.
- Bindon Aiming Concept™ (BAC) Yes
- Illumination Source Fiber Optics & Tritium
- Power Source Fiber Optics & Tritium
- Adjustment 0.25 MOA per click
- Eye Relief 1.9 in. (48.26mm)
- Exit Pupil 0.33 in. (8.38mm)
- Field of View (degrees) 3.7°
- Field of View (feet) 19.3 ft. @ 100 yds. (6.43m @ 100m)
- Mount Trijicon Q-LOC™ Technology Mount
- Housing Material Forged Aluminum
- Finish Matte Black
