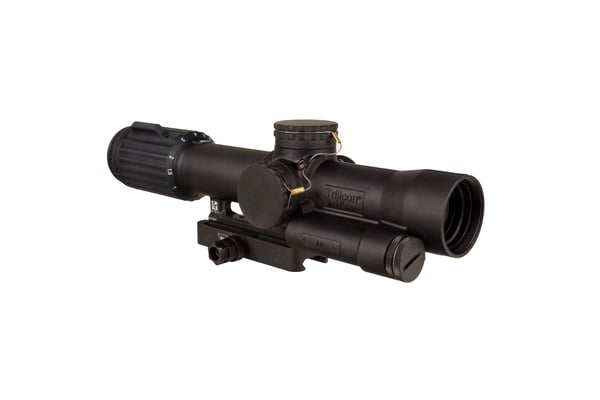

The Trijicon 1-8x28 VCOG® (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle/MOA crosshair dot reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
The Trijicon VCOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
- Matte black anodized finish
- Made in the USA
SPECIFICATIONS
- Length x Width x Height 10.8 in x 2.8 in x 3.3 in (274.32mm x 71.12mm x 83.82mm)
- Weight 28.9 oz. (819.3g)
- Magnification 1-8x
- Objective Size 28mm
- Reticle Pattern Segmented Circle / Crosshair
- Day Reticle Color Red
- Night Reticle Color Red
- Focal Plane First
- Bullet Drop Compensating (BDC) No
- Caliber MRAD
- Bindon Aiming Concept™ (BAC) Yes
- Illumination Source LED
- Illumination Settings 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting
- Power Source AA Lithium or Alkaline Battery
- Battery Life 633 hours (26.4 days) at setting 6
- Adjustment .1 MRAD
- Adjustment Range 35 MRAD
- Eye Relief 4 in. - 3.9 in. (101.6mm - 99.06mm)
- Exit Pupil 0.40 in. - 0.14 in. (10.16mm - 3.56mm)
- Field of View (degrees) 20° - 2.5°
- Field of View (feet) 109.2 ft. - 13.1 ft. @ 100 yds. (36.4 - 4.37m @ 100m)
- Mount Quick Release Mount with Trijicon Q-LOC™ Technology
- Housing Material 7075-T6 forged aluminum
- Finish Matte Black
- Submersion Depth 66 ft. (20m)
