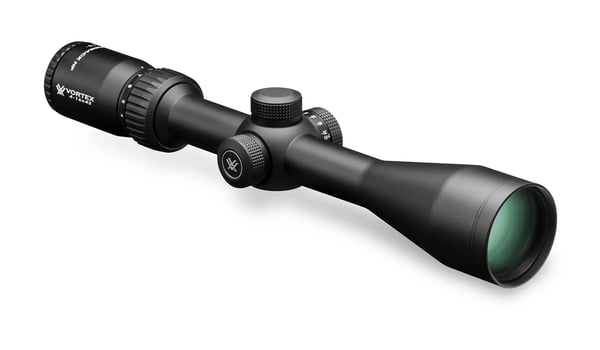

VORTEX Diamondback HP 4-16 x 42 Riflescope Dead-Hold

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.

FEATURES:

OPTICAL FEATURES:

XD™ Lens Elements - Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.

XR™ Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES:

Tube Size - 1-inch diameter.

Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.

Shockproof - Rugged construction withstands recoil and impact.

Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.

Side Focus - Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES:

Precision-Glide Erector System -Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

CONVENIENCE FEATURES:

Fast Focus Eyepiece - Allows quick and easy reticle focusing.

SPECIFICATIONS:
Magnification: 4-16 x
Objective Lens Diameter: 42 mm
Eye Relief: 4 inches
Field of View: 23.8-6.1 feet/100 yards
Tube Size: 1-inch
Turret Style: Capped
Adjustment Graduation: 1/4 MOA
Travel per Rotation: 15 MOA
Max Elevation Adjustment: 80 MOA
Max Windage Adjustment: 80 MOA
Parallax Setting: 30 yards to infinity
Length: 12.5 inches
Weight: 18 ounces RETICLE:

Dead-Hold BDC Reticle - Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
