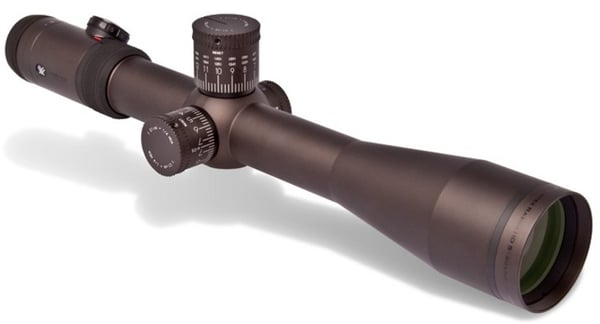

VORTEX Razor HD 5-20x50 FFP

Vortex breaks new ground with their Razor HD tactical riflescopes. Built literally from the ground up to meet the demanding needs of precision shooters. The Razor HD 5-20x50 is a state-of-the-art long-range performer built on a solid 35mm one-piece tube and packed with more than a dozen unique performance and optical features—including a precision-etched first focal plane reticle.

FEATURES:

OPTICAL FEATURES:

APO System - Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.

Optically Indexed Lenses - Optimize image sharpness and brightness from edge to edge.

HD Lens Elements - Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.

XR™ Fully Multi-Coated - Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

First Focal Plane Reticle - Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

Glass-etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle - Provides precise aiming under low-light conditions.

CONSTRUCTION FEATURES

Tube Size - 35 mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof - Rugged construction withstands recoil and impact.

Hard Anodized Stealth Shadow Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.

ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Exposed Tactical-Style Turrets - Provide fast, accurate and easily read elevation and windage adjustments.

Side Focus - Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

INTERNAL MECHANISM DESIGN FEATURES:

RZR Zero Stop - Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. US Patent 8,166,696 B2

Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.

Turret Screws - Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.

Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

CONVENIENCE FEATURES

MAG-View Fiber Optic - Provides a highly visible reference point for the magnification setting.

Radius Bar - Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations.

Fast Focus Eyepiece - Allows quick and easy reticle focusing.

SPECIFICATIONS:
Magnification: 5-20 x
Objective Lens Diameter: 50 mm
Eye Relief: 3.9 inches
Field of View: 22-5.76 feet/100 yards
Tube Size: 35 mm
Turret Style: Tactical / RZR Zero Stop
Adjustment Graduation: 1/4 MOA
Travel per Rotation: 25 MOA
Max Elevation Adjustment: 125 MOA
Max Windage Adjustment: 125 MOA
Parallax Setting: 40 yards to Infinity
Length: 15.8 inches
Weight: 35.2 ounces
