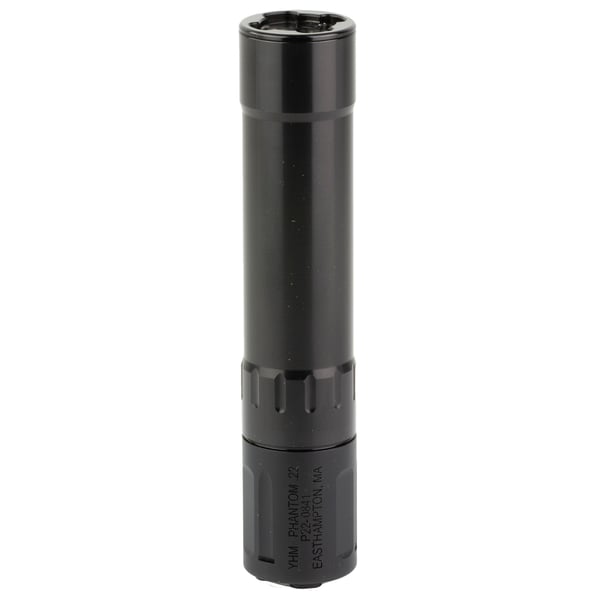

Designed for lighter weight, quieter performance, and easy maintenance, the YHM Phantom® .22 uses a newly designed, shielded interlocking baffle stack for superior suppression on pistols and rifles—handling up to 5.7×28 mm while weighing just 4 ounces.
Highlights
- New baffle system delivers excellent sound reduction on both pistols and rifles
- Blast chamber rear doubles as the takedown tool for the muzzle cap
- Shielded interlocking 17-4 stainless steel baffles with indexing tabs for foolproof orientation
- Two-piece outer assembly: 7075-T6 aluminum blast chamber (with serial) and 6061-T6 tube
- Stainless steel 1/2×28 thread insert to extend mount thread life
- Rated up to 5.7×28 mm; full-auto rated
Specifications
- Caliber: .22
- Weight: 4 oz
- Length: 5.5 in
- Diameter: 1.1 in
- Construction: Aircraft-quality aluminum & 17-4 PH stainless steel
- Mount: 1/2×28 direct thread
- Decibel Rating: 115 dB
- Full Auto Rated: Yes
Minimum Barrel Lengths
- .22 LR: No restrictions
- .22 MAG: 10 in
- 5.7×28: 10 in
- .17 HMR: 10 in
